• Model NO.：PAG6,260
• Main Frame Profile Size：64.5X64.5X2.5mm (From 3m to 6m) & 120X68X3mm (8m &
• Wind Load：80km,H
• Fabric：Double PVC Coated Polyester Fabric, 750-900g,Sq. M
• Frame：Hard Pressed Extruded Aluminum 6061,T6
• Connections：Hot-DIP Galvanized
• Transport Package：1. Membrace Film; 2. PVC Bag; 3. Carton
• Specification：ISO 9001: 2008
• Trademark：LIRI TENT
• Origin：Guangdong, China
• HS Code：6306220090
• Production Capacity：100, 000 Sq. M,Month

Basic Info.

Model NO. PAG6/260 Main Frame Profile Size 64.5X64.5X2.5mm (From 3m to 6m) & 120X68X3mm (8m & Wind Load 80km/H Fabric Double PVC Coated Polyester Fabric, 750-900g/Sq. M Frame Hard Pressed Extruded Aluminum 6061/T6 Connections Hot-DIP Galvanized Transport Package 1. Membrace Film; 2. PVC Bag; 3. Carton Specification ISO 9001: 2008 Trademark LIRI TENT Origin Guangdong, China HS Code 6306220090 Production Capacity 100, 000 Sq. M/Month

Product Description

1. Application:

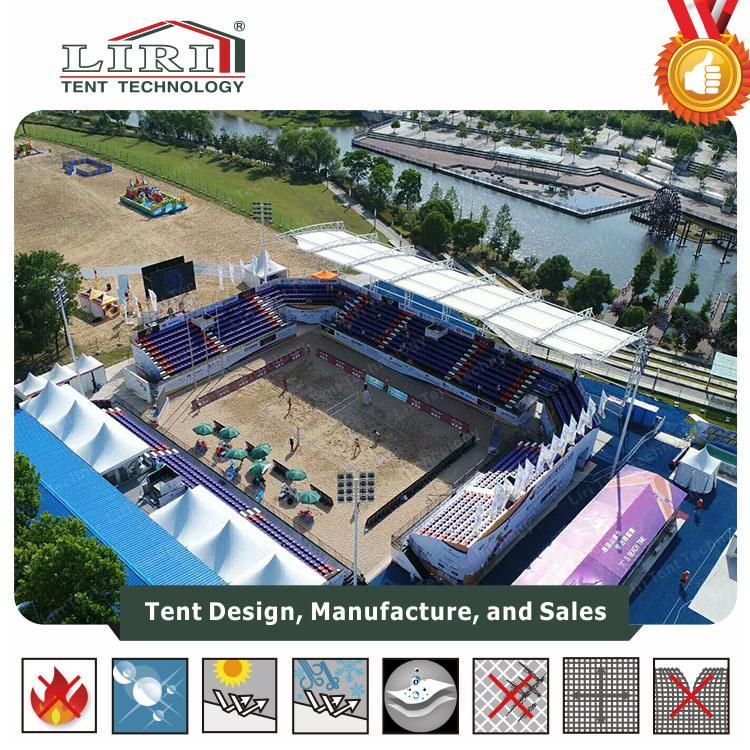

The pagoda tent can be widely used for the weddings, parties, exhibition, , festivals celebrations, cafe shop, restaurants, corporate events, or other events, etc

2. Specification for the big tents PAG series):
For details, pls refer to below chart:
Main frame profile size for PAG series: 64.5x64.5x2.5mm (From 3m to 6m) & 120x68x3mm (8m & 10m)
Wind load:80km/h
Minimum tent length: In order to reach  the designed wind load and make sure the tent is safety, pls set up the tent with the required minimum tent length.



3. Optional Accessories:
Ground anchor, anchor puller, weight plate, glass door, fire door, glass wall, ABS hard wall, lining, flooring system, clear PVC windows, ramp, transport rack etc

4. Materials:
Fabric: Double PVC coated polyester fabric, 750-900g/sq. M, water proof, UV resistance, fire retardant according to standard NFPA701, CFM & DIN4102 B1/M2
Frame: Hard pressed extruded aluminum 6061/T6, anodized surface finishing.
Connections: Hot-DIP galvanized

5. Color available: White, red, yellow, blue, green, black, grey, transparent etc

6. Products certificate:
Fabric: Test reports for the fire retardant, standards: NFPA701, CFM & DIN4102 B1/M2
Structure safety: Certificates by the registered engineers in the U. S. A & Australia.

If the customers need above certificates copy, pls feel free to contact with Liri Tent Technology. We will not show them on the website to avoid copys.

Model	Side	Length	Bay	Eave height	Ridge height
PAG3/250	3m	unlimited	3m	2.5m	4.3m
PAG4/250	4m	unlimited	4m	2.5m	4.8m
PAG5/250	5m	unlimited	5m	2.5m	5.43m
PAG6/250	6m	unlimited	6m	2.5m	5.92m
PAG8/260	8m	unlimited	4m	2.6m	5.36m
PAG10/260	10m	unlimited	5m	2.6m	6.38m
